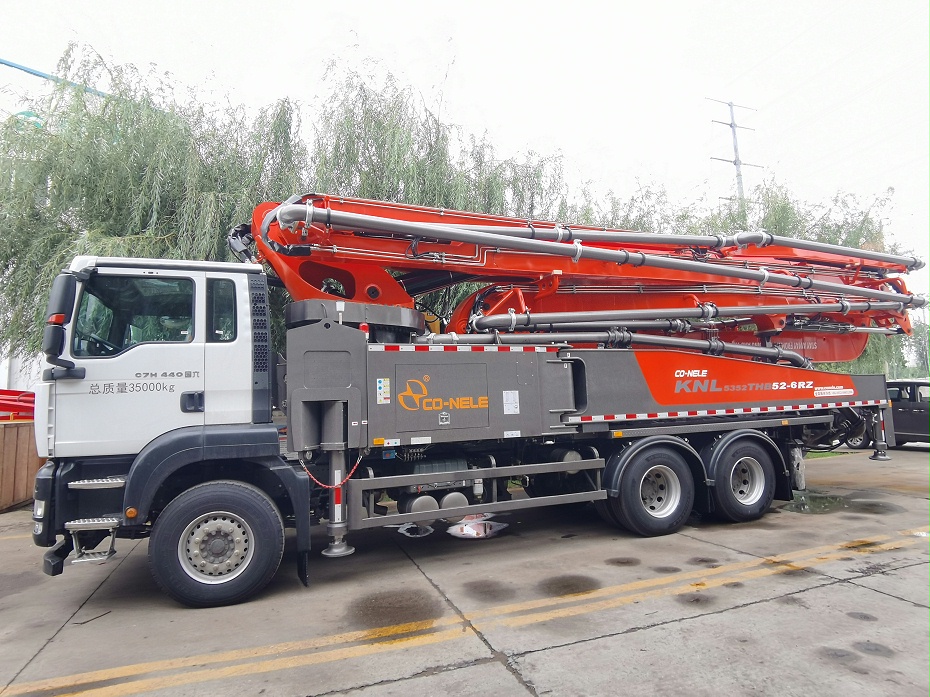

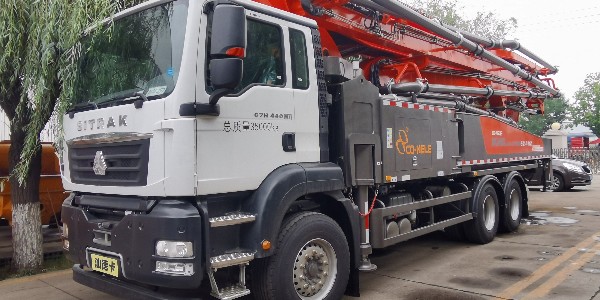

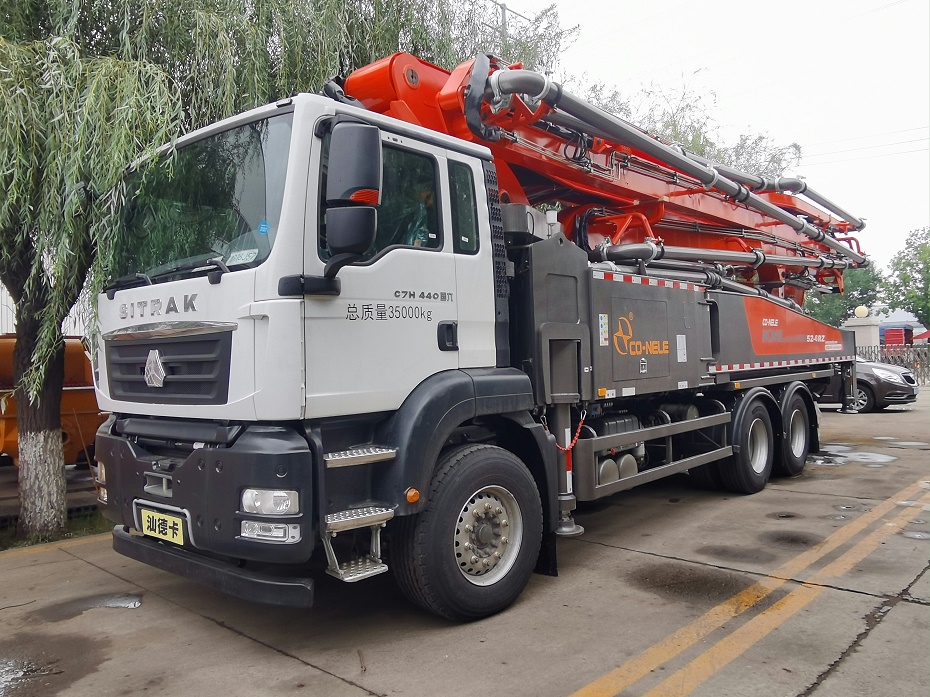

型號Model

KNL5352THB 52-6RZ

項目

單位

值

泵送係統Pumping system

最大理論輸送量(高壓)Max. Theor. output(high pressure)

m³/h

120

混凝土最大出口壓力(高壓) Max. Theor. concrete output Pressure(high pressure)

MPa

10.3

額定工作壓力  Rated working pressure

MPa

32

料鬥容積  Hopper capacity

L

600

上料高度 Filling height

mm

1480

液壓係統型式 Hydraulic system type

開式

分配閥形式Distribution valve

S管閥 S valve

油缸缸徑×行程  Oil cylinder dia.×stroke

mm

φ125×1650

混凝土缸徑×行程Concrete cylinder dia.×stroke

mm

φ230×1650

液壓油冷卻Hydraulic oil cooling

風冷Air cooling

臂架Placing boom

結構形式 Structure type

52-6RZ

最大布料高度 Placing depth

m

51.4

最大布料半徑 Horizontal distance

m

46.4

最大布料深度 Placing depth

m

36.9

回轉角度Slewing angle

±360°

輸送管直徑  Pipe diameter

mm

125

末端軟管長度End hose length

mm

3000

臂架最小打開高度Min. height of opening placing boom

mm

8000

支腿跨距（前×後×縱向）Outriggers span (front×rear×side)

mm

9650×10150×9820

底盤及整車Chassis and the whole machine

底盤型號Chassis model

ZZ5356V524MF1

軸距 Wheelbase

mm

4650+1400

發動機型號Engine type

MC11.44-60
